Fortinet OT Greenfield Reference Architecture

The estate before the design

The operator’s OT footprint had grown the way most industrial estates grow: one site at a time, each solved with whatever was available and defensible on the day. Refineries and remote terminals ran a mixture of network, firewall, switching and cellular equipment — Cisco, Peplink, Digi International, Sierra Wireless, Cradlepoint, Netgear, Dell and others — with no consistent architectural standard binding them together.

The operational consequences were the familiar ones. Connectivity failures recurred without a common diagnostic path. Centralized visibility was limited, because there was no single place from which the estate could be seen. Environmental conditions took equipment out at sites that had never been designed for them. Remote-access methods differed by site, which made secure access a per-site negotiation rather than a property of the network. And often enough, restoring a site meant dispatching somebody to it for work that should never have required a vehicle.

Why this region became the reference

A newly acquired refinery and its eleven associated pipeline and terminal sites were selected as the first greenfield build. That decision mattered more than it might appear. The alternative paths were to keep absorbing each environment on its own terms, or to begin a large-scale hardware replacement before anyone had agreed what the target actually was. Both spend money without accumulating a standard.

Treating this region as the reference architecture meant the first deployment had to carry a second obligation: everything produced for it had to be reusable somewhere else. I was brought in to develop that architecture, define the technical standards, validate the solution, and establish the deployment and migration methodology that would carry it into subsequent regions and into sites acquired later.

The architecture

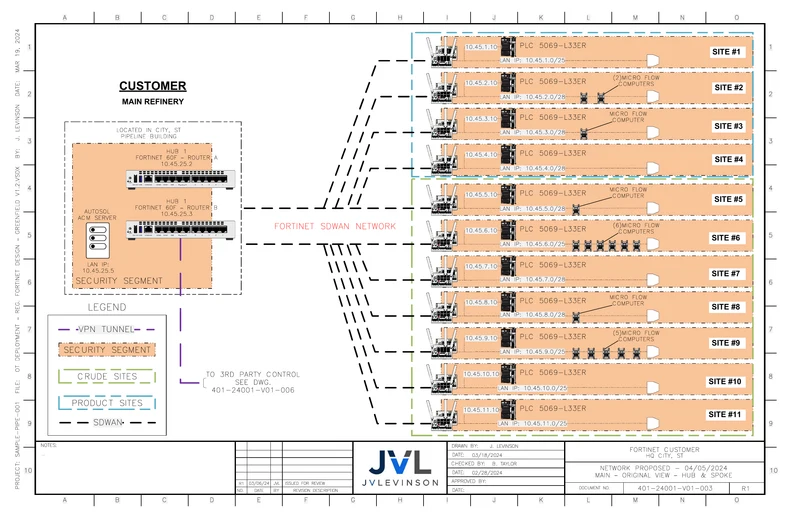

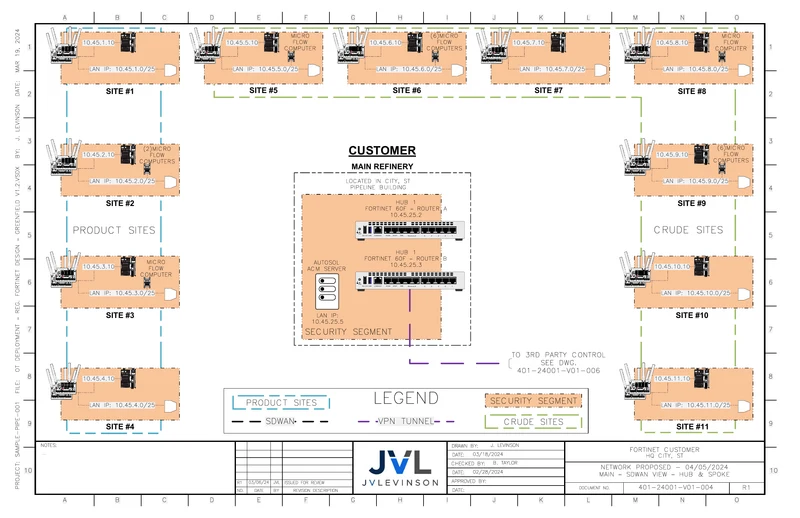

The design is a modular hub-and-spoke built on Fortinet Secure SD-WAN, with encrypted VPN connectivity, high-availability options, security-zone separation and granular segmentation between the refinery, crude, product, third-party and management environments.

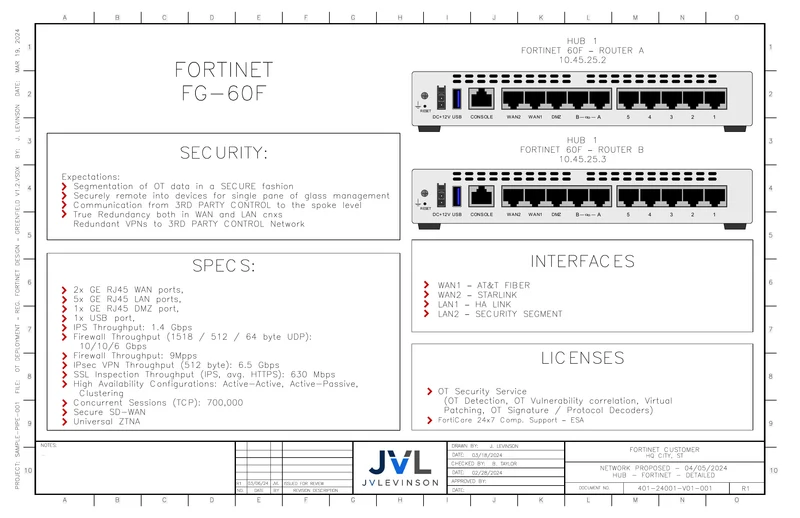

At the hub, a high-availability pair of FortiGate 60F appliances — Router A and Router B — rather than a single gateway, with a dedicated HA link and a separate security segment. The representative drawing set carries the platform’s specifications alongside the design: 1.4 Gbps IPS throughput, 6.5 Gbps IPsec VPN throughput, active-active and active-passive HA, and Secure SD-WAN.

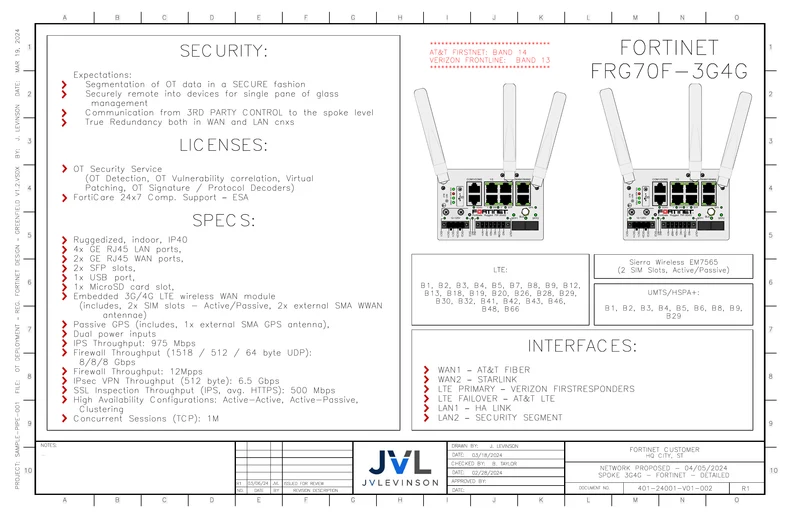

At the terminals, ruggedized hardware without exception. All eleven remote sites use the FortiGate Rugged 70F-3G4G (model FGR-70F-3G4G), deployed in high-availability pairs, with dual DC power inputs, dual SIM, GPS, integrated LTE and a hardware bypass path. The ruggedized platform was not a preference; it was the entry requirement for the industrial cabinets and geographically dispersed sites this estate runs on. Where the facility supported it, cabinets were designed around redundant WAN paths, high-availability firewall configurations and independent electrical feeds, so that no single carrier, firewall or power path could take a terminal off the air by itself.

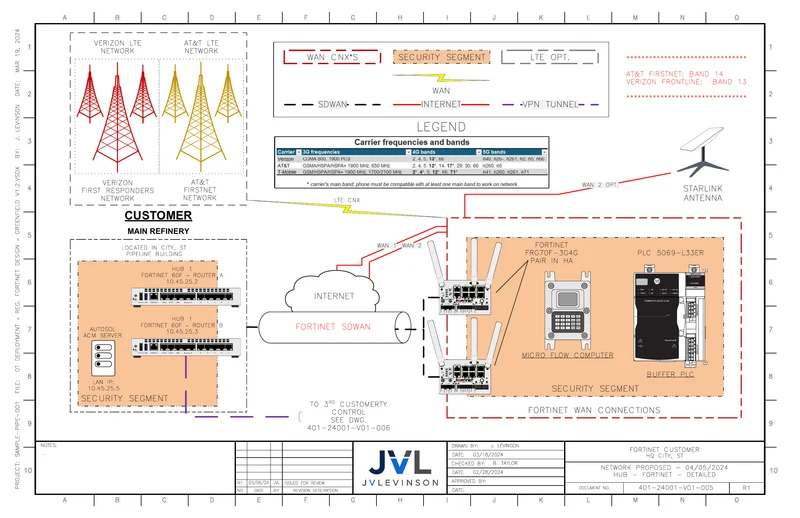

Connectivity, and the carrier-band constraint

Transport was designed to be interchangeable. Depending on what a site could actually get, the architecture combines terrestrial broadband or carrier circuits, Starlink, LTE and public-safety cellular. The hub, for instance, takes fibre on WAN1 and Starlink on WAN2.

Public-safety cellular is where the design had to be explicit rather than aspirational. FirstNet, Built with AT&T operates on Band 14. Verizon Frontline runs on Band 13. The FGR-70F-3G4G in the configuration under evaluation supported the Verizon requirement but did not provide Band 14, so it could not satisfy FirstNet.

That limitation is written into the drawing set rather than worked around. FirstNet compatibility was not required for the initial region, and holding the region while the platform caught up would have cost schedule for no operational gain. The more important protection was structural: because access technology is decoupled from the rest of the architecture, a site can change how it reaches the network without anything else being redesigned. Fortinet has since expanded its rugged cellular portfolio, and that change lands as a hardware swap rather than an architectural revision — which is exactly the outcome the decoupling was for.

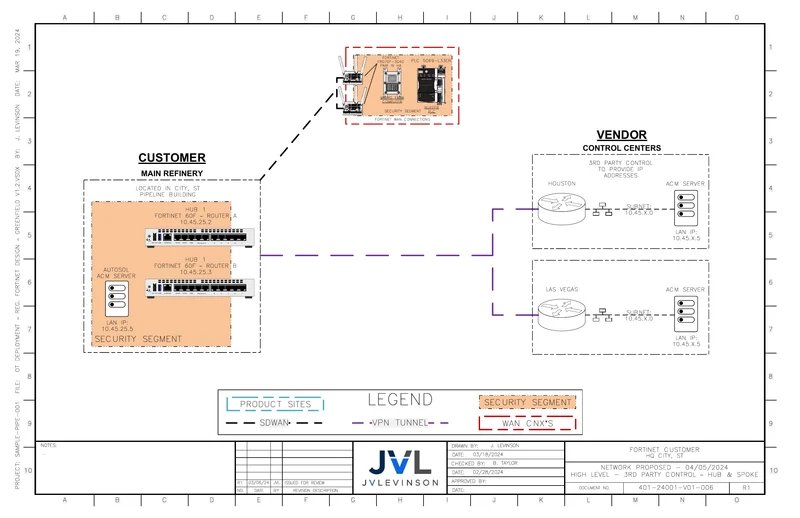

Third-party access

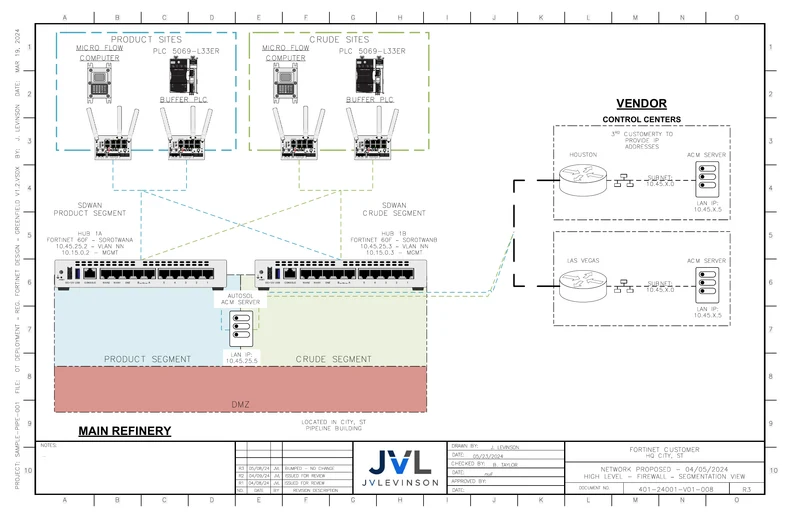

External organizations responsible for systems such as historian and control-support platforms were not given generalized access to the OT environment. Connectivity reaches only the required networks and services, with security policy and segmentation defining precisely which systems may communicate. The set documents dedicated third-party control-centre connectivity alongside separate refinery, crude, product, security and DMZ segments, rather than establishing unrestricted site-to-site reachability and then trying to constrain it afterwards.

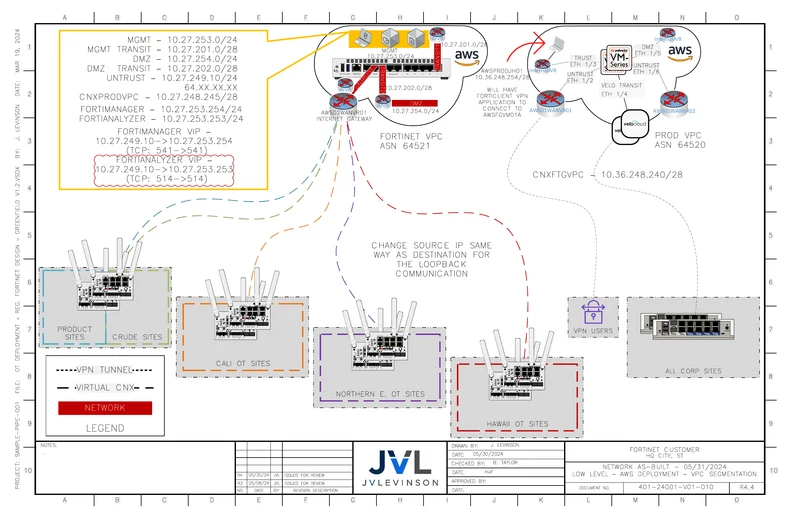

Centralized management in AWS

The supporting cloud environment was designed with the same segmentation discipline as the plant network. FortiManager provides centralized configuration and policy management; FortiAnalyzer provides centralized logging, analytics, reporting and security visibility. The AWS architecture separates management, DMZ, transit, production and untrusted segments, fronted by a FortiGate-VM instance, with administrative access arriving through a controlled jump-host path rather than management workloads being exposed as ordinary cloud resources.

Security posture and frameworks

Security was part of the architecture rather than an overlay applied once connectivity worked. The design was informed by the Purdue Enterprise Reference Architecture, NIST SP 800-82 guidance for industrial control systems and OT security, and ISO/IEC 27001 information-security management principles.

That phrasing is deliberate. The architecture was developed using principles informed by those frameworks. It is not a claim of formal compliance or certification, because a representative architecture package cannot substantiate one.

FortiGate subscriptions included the FortiGuard OT Security Service, providing OT-specific detection, industrial protocol and application visibility, IPS protections, vulnerability correlation and virtual patching. The project documentation specified FortiCare 24x7 Comprehensive Support under the customer’s enterprise support agreement; Fortinet’s current equivalent nomenclature is FortiCare Premium Support.

Building for repeatability

The requirement that separated this from a competent site build was that it had to be reproducible by someone else.

Configurations were built and validated in a lab that reproduced the PLC cabinet and remote-site topology before anything reached production. Addressing conventions, security-policy structures, SD-WAN settings, deployment procedures, bills of materials and handoff documentation were all developed as standards rather than as artifacts of one site. Subsequent terminals and regions deploy from those templates, with site-specific elements added or removed according to connectivity, environment, operational role and business requirements.

Delivery

The first region had been expected to take roughly five to six months to deploy and validate. With the architecture standardized, lab-tested and supported by the wider implementation team, deployment and verification completed in approximately three to four months — hardware availability accounting for a meaningful share of what remained.

The more durable result was what that made possible. Work originally framed as a potentially multi-year modernization became a repeatable regional architecture that could be deployed progressively, sequenced against budget, operational criticality and business priority rather than attempted all at once.

What was handed over

Beyond the first implementation: architecture drawings, HLD and LLD documentation, configuration and deployment standards, migration guidance, future-state bills of materials, replacement strategies for the heterogeneous legacy networking and cellular equipment, operational handoff documentation, and a recommended sequence for modernizing further regions by business criticality and production impact.

What the engagement produced was not a refresh of aging network equipment. It was a repeatable IT/OT architecture, cybersecurity, connectivity, management and governance model — one the organization could apply to further regions, and to refinery and terminal sites acquired after the fact, without starting the architectural argument over each time.

About this artifact

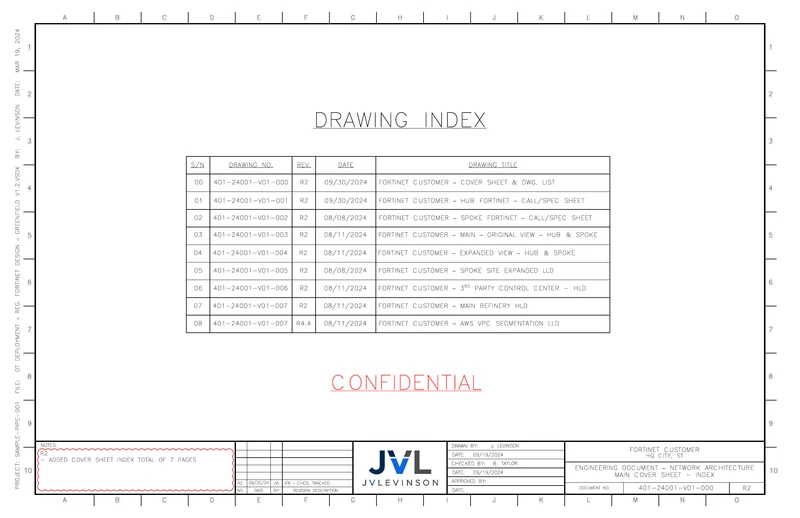

The accompanying package, OT Deployment — Regional Fortinet Design — Greenfield, is a representative version of this architecture. It documents hub-and-spoke connectivity, refinery and pipeline segmentation, controlled inter-site and third-party communication, Secure SD-WAN, ruggedized FortiGate deployment, OT security services and the AWS-based FortiManager/FortiAnalyzer management architecture.

It has been intentionally anonymized and modified. Names, addressing, relationships and certain design elements were generalized or altered to prevent identification of the customer or reconstruction of the production environment, and it should be read as a representative architecture artifact rather than an unmodified as-built.
